Scrap Metal Shredder
About Scrap Metal Shredder

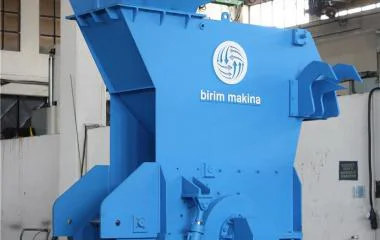

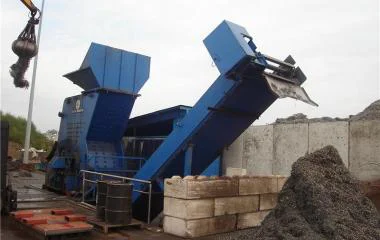

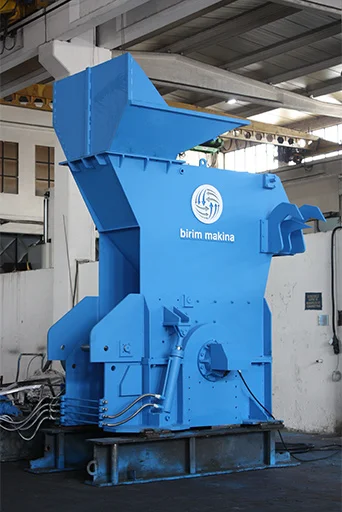

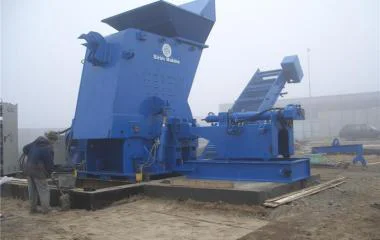

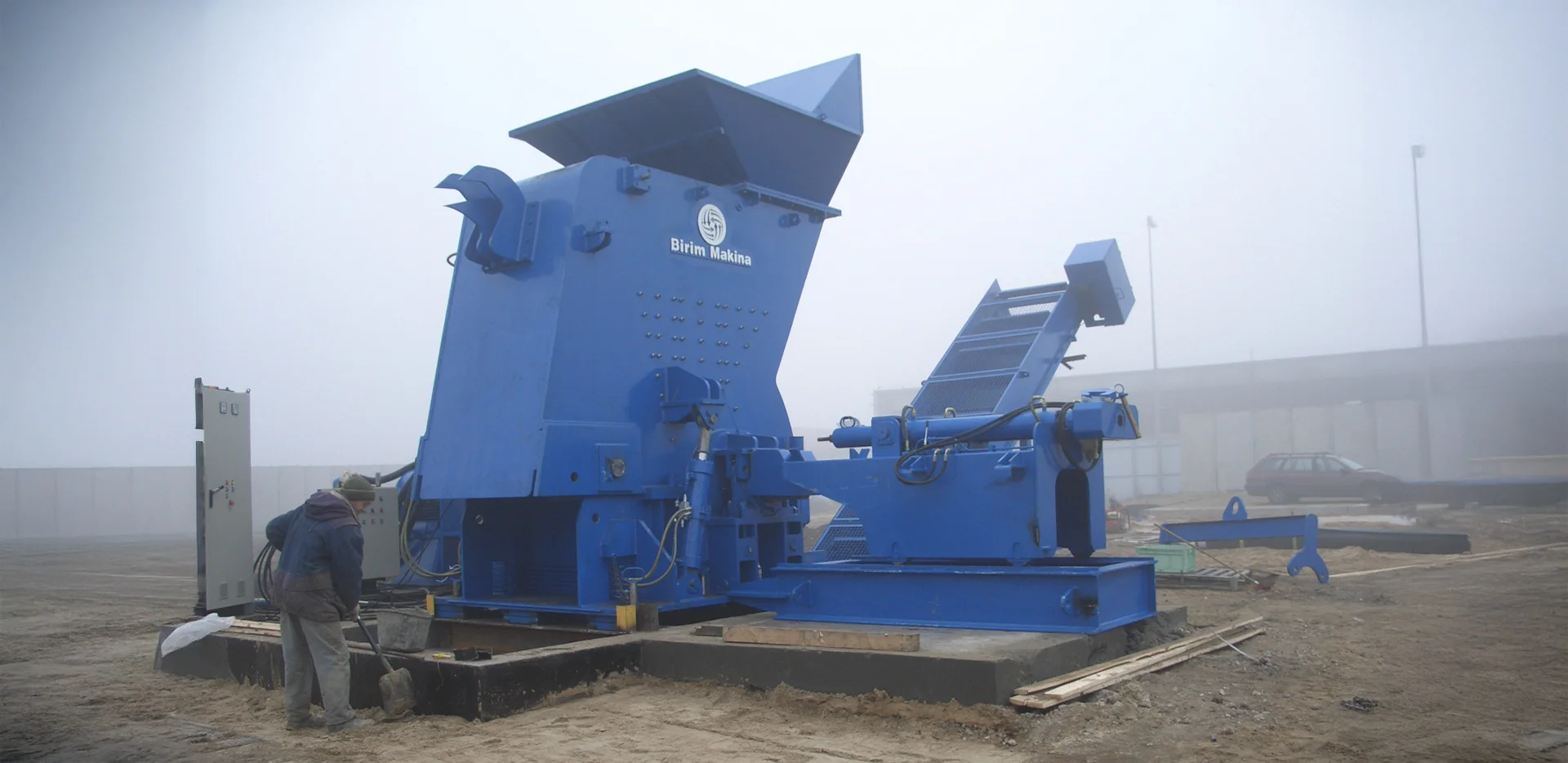

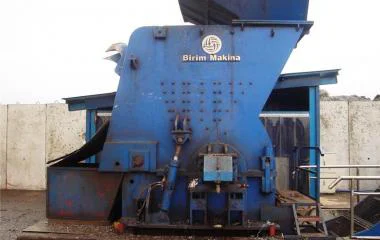

Built for maximum durability and continuous performance, the Birim Makina Scrap Shredder is designed to crush metal turnings, chips, and other recyclable materials into manageable sizes. With three power configurations (55, 110, and 200 kW) and rotor designs optimized for wear resistance, it’s the ideal solution for foundries, machine shops, and scrap processing plants. Heavy-duty design, reversible rotor, and replaceable Hardox wear plates ensure long service life and low maintenance, even in the most demanding environments.
Operation
- Motor Power Options: 55 kW / 110 kW / 200 kW
- Rotor Speed: 1000 rpm
- Suitable Input Materials:
- Metal turnings
- Chips from machining
- Incineration scrap
- Castings (motor and gearboxes)
- Light aluminum profiles
- Pressed rolls
- Small white goods, tin cans
- Ouput Capacity:
- Turnings: up to 18 tons/hour
- Castings: up to 7 tons/hour
- Aluminum profiles: up to 4 tons/hour
- Small white goods: up to 3.5 tons/hour
- Full automatic and continuous shredding operation
- Electric power-driven system.
- Ideal for reducing scrap size and increasing melting efficiency in recycling operations
Structure
- Strong, heavy-duty welded body for long-lasting durability
- Reversible rotor to extend hammer life
- Replaceable original Hardox wear plates
- Tiltable upper body for easy maintenance access
- Rotor diameters: 890 mm – 1125 mm
- Rotor lengths: 730 mm – 1420 mm
- Input area sizes from 730×795 mm up to 1420×1230 mm
- Weight range: 8 to 34 tons depending on model
- Weight range: 8 to 34 tons depending on model
